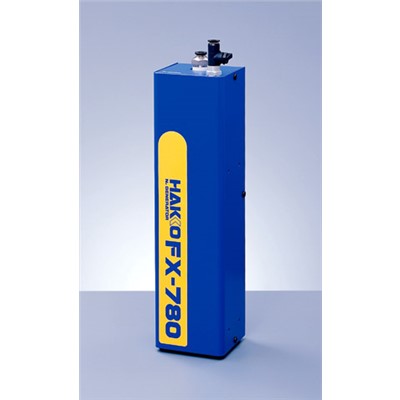

Hakko FX780-01 – FX-780 Nitrogen Generator – Compact

The Hakko FX-780 (FX780-01) Compact Nitrogen Generator for the N2 Nitrogen Soldering System is the ideal solution for all your Lead-free hand-soldering applications. The bench-top FX-780 Nitrogen Generator creates nitrogen gas from filtered, dry compressed air and the FX-791 Nitrogen Controller and FM-2026 Soldering Iron delivers it efficiently and uniformly to the soldering area. If you do not have nitrogen availability at your work station, the compact FX-780 Generator is the best to supply it. It has an air supply pressure of 44 – 102 psi (0.3 – 0.7 MPa), a concentration of generated air of 99.9% (max), and a generated N2 gas flow of 1.5 l/min when 0.5 MPa of air supply pressure is supplied at 25°C (the concentration of generated N2 gas of 98%). This generator can be placed perpendicularly or horizontally to take up less space on the bench top. This part number FX780-01 is sold separately, and not included with FM2026-KIT.
